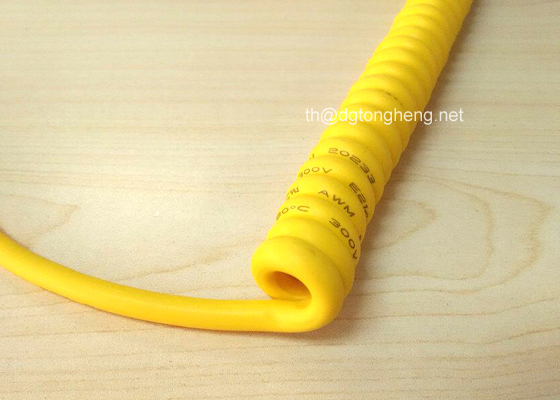

UL20233 Spiral Cable

UL20233 Spiral Cable

Product Specification
Part Name Spiral Cable Feature Standard UL safety marked

UL20233 Spiral Cable


  • Safety approval style: UL20233
  • Flammability: VW-1.
  • Rated temperature: 80°C.

  • Rated voltage: 300V.


Cable structure:

  • Conductor material: Annealed copper wire strands.

  • Insulation material: AMW compliant material.

  • Jacket material: Thermoplastic Polyurethane.

  • Screen shield type: Foil or Mylar, optional.

  • Uniform insulation thickness for easy stripping operation.


Ultra flexibility:
  • Fixed operation length: spiral length (at rest) x 3.5.
  • Maximum extended distance: spiral length (at rest) x 4.

  • Ultra flexible cable is good for applications that require tight turns under limit space.


Good reliability:
  • Excellent resistance to extremely cold use condition, up to -40°C.

  • Dielectric voltage: 2000V AC.


Recommended application:

  • Signal and power interconnection of electrical devices and equipment.


SpecificationConductor
Strands		Insulation
Thickness		Jacket
Thickness		Conductor
Resistance
No/mmmmmmΩ/KM
30AWGx2C7/0.100.231.143381.00
28AWGx2C19/0.080.231.143239.00
26AWGx2C7/0.160.231.143150.00
24AWGx2C11/0.160.231.14394.20
22AWGx2C17/0.160.231.14359.40
20AWGx2C21/0.1780.231.14336.70
18AWGx2C34/0.1780.231.14323.20
16AWGx2C65/0.160.231.14314.60
30AWGx3C7/0.100.231.143381.00
28AWGx3C19/0.080.231.143239.00
26AWGx3C7/0.160.231.143150.00
24AWGx3C11/0.160.231.14394.20
22AWGx3C17/0.160.231.14359.40
20AWGx3C21/0.1780.231.14336.70
18AWGx3C34/0.1780.231.14323.20
16AWGx3C65/0.160.231.14314.60
30AWGx4C7/0.100.231.143381.00
28AWGx4C19/0.080.231.143239.00
26AWGx4C7/0.160.231.143150.00
24AWGx4C11/0.160.231.14394.20
22AWGx4C17/0.160.231.14359.40
20AWGx4C21/0.1780.231.14336.70
18AWGx4C34/0.1780.231.14323.20
16AWGx4C65/0.160.231.14314.60
30AWGx5C7/0.100.231.143381.00
28AWGx5C19/0.080.231.143239.00
26AWGx5C7/0.160.231.143150.00
24AWGx5C11/0.160.231.14394.20
22AWGx5C17/0.160.231.14359.40
20AWGx5C21/0.1780.231.14336.70
18AWGx5C34/0.1780.231.14323.20
16AWGx5C65/0.160.231.14314.60
30AWGx6C7/0.100.231.143381.00
28AWGx6C19/0.080.231.143239.00
26AWGx6C7/0.160.231.143150.00
24AWGx6C11/0.160.231.14394.20
22AWGx6C17/0.160.231.14359.40
20AWGx6C21/0.1780.231.14336.70
18AWGx6C34/0.1780.231.14323.20
16AWGx6C65/0.160.231.14314.60
30AWGx7C7/0.100.231.143381.00
28AWGx7C19/0.080.231.143239.00
26AWGx7C7/0.160.231.143150.00
24AWGx7C11/0.160.231.14394.20
22AWGx7C17/0.160.231.14359.40
20AWGx7C21/0.1780.231.14336.70
18AWGx7C34/0.1780.231.14323.20
16AWGx7C65/0.160.231.14314.60
30AWGx8C7/0.100.231.143381.00
28AWGx8C19/0.080.231.143239.00
26AWGx8C7/0.160.231.143150.00
24AWGx8C11/0.160.231.14394.20
22AWGx8C17/0.160.231.14359.40
20AWGx8C21/0.1780.231.14336.70
18AWGx8C34/0.1780.231.14323.20
16AWGx8C65/0.160.231.14314.60
